Automation
A W Bell Machinery has firmly established itself as a leader in foundry automation. By utilising automated technologies, foundries can unlock new levels of efficiency, safety, and competitiveness.

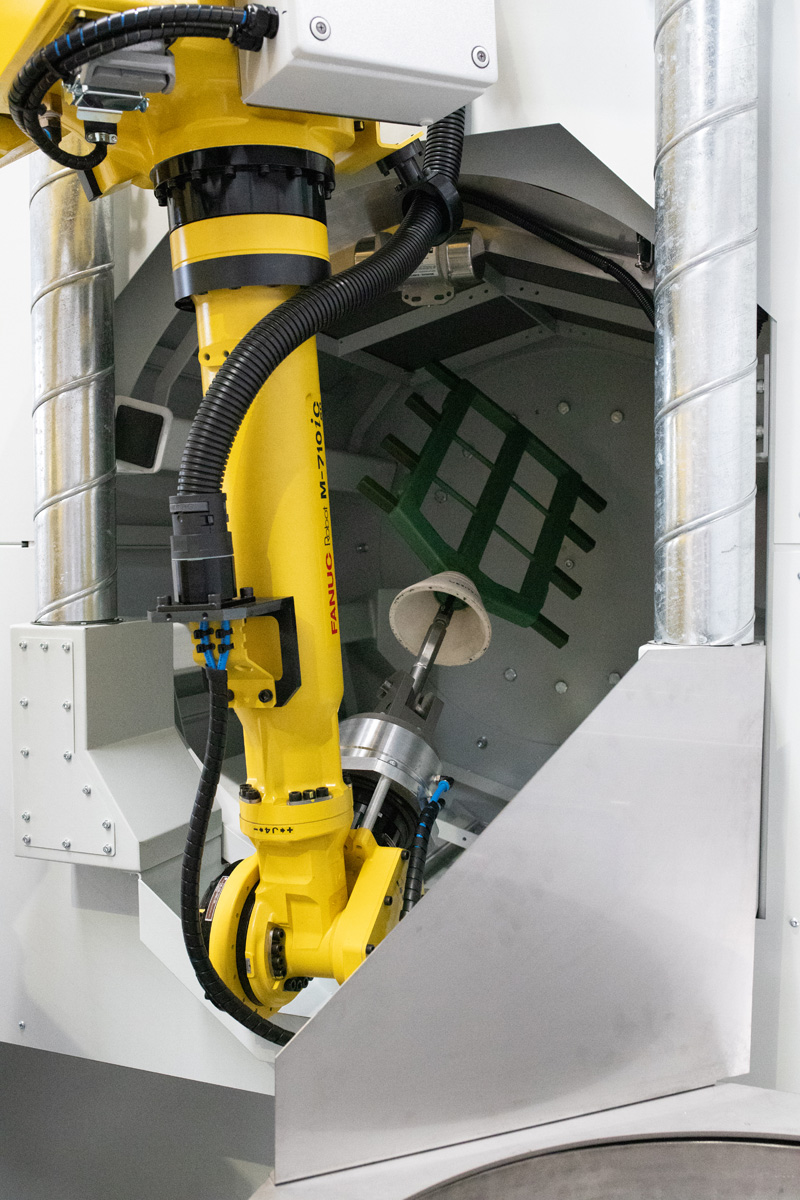

Our custom-designed Pick & Place system can be retrofitted to existing machines. Using robotics, the process of picking and placing a part ready for processing is done automatically, minimising labour needs and improving efficiency.
To find out how a robotic pick and place system can benefit you, contact us today.
The advanced Robotic Pouring technology improves consistency in production, with its capability to pour using preset shell positions. The robotic arm is capable of up to 41 kg pours, and greatly improves safety by reducing the number of workers required for pouring and also their proximity to the molten metal. This robot is specifically designed for one-off and low volume rate production. Additionally, its state-of-the-art target system allows for any tree to be poured, enabling further job shopping and flexibility.
Capabilities:
To get a quote, please contact us today.
Thinking of automating several processes? A W Bell Machinery can provide a customised solution for robotic processing cells specific to your needs and budget. This could include cut off, grinding, deburring/chamfering and/or packing of parts.
We assess your individual needs, and through an in-depth consultation we provide a proposal that details options we believe would deliver on your requirements.
To book in a consultation, kindly contact us today.
Tree rotation, tree tilt (45° forward and back), and in/out motion is all controlled electronically via the joystick controller, as is the nozzle up/down motion. Nozzle tilt motion (45° in all directions) uses direct control cables to give better feel and responsiveness to the operator.
| Maximum blast pressure | 10,000 psi |
| Tree envelope (Max) | 800mm diameter X 800mm height |
| High Pressure Pump | 45kW with 40lpm flow rate |
| Water Filtration System | Proportional control with chiller system and settling tanks (4 x 1,000lt) |
The WBS Drag Conveyor removes all of the shell material from the blast cabinet as well as facilitate water into the settling system for recycling. The conveyor can be supplied with a bin or designed to customer specifications.
The WBS750 adds an automatic nozzle to the manual cabinet. The automatic cycle provides a rotating nozzle that is programmed via a touchscreen interface to remove the bulk of investment casting shell. Once the cycle is complete, the workpiece remains where it is so that the operator can take control of the manual nozzle and clean the finer details.
| Maximum blast pressure | 10,000 psi |
| Tree envelope (Max) | 800mm diameter X 800mm height |
| High Pressure Pump | 45kW with 40lpm flow rate |
| Water Filtration System | Proportional control with chiller system and settling tanks (4 x 1,000lt) |
The WBS Drag Conveyor removes all of the shell material from the blast cabinet as well as facilitate water into the settling system for recycling. The conveyor can be supplied with a bin or designed to customer specifications.
The WBS750 adds an automatic nozzle to the manual cabinet. The automatic cycle provides a rotating nozzle that is programmed via a touchscreen interface to remove the bulk of investment casting shell. Once the cycle is complete, the workpiece remains where it is so that the operator can take control of the manual nozzle and clean the finer details.
| Maximum blast pressure | 10,000 psi |
| Tree envelope (Max) | 800mm diameter X 800mm height |
| High Pressure Pump | 45kW with 40lpm flow rate |
| Water Filtration System | Proportional control with chiller system and settling tanks (4 x 1,000lt) |
The WBS Drag Conveyor removes all of the shell material from the blast cabinet as well as facilitate water into the settling system for recycling. The conveyor can be supplied with a bin or designed to customer specifications.
We understand and appreciate the uniqueness of each foundry operation. With over 30 years of experience in designing equipment specifically for foundries, we pride ourselves on delivering a solution that is right for your business.
