Shell Room

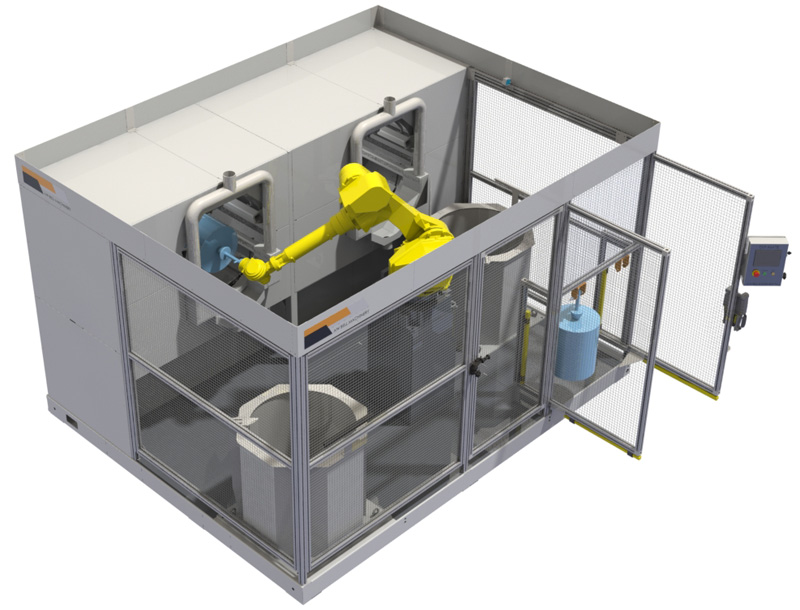

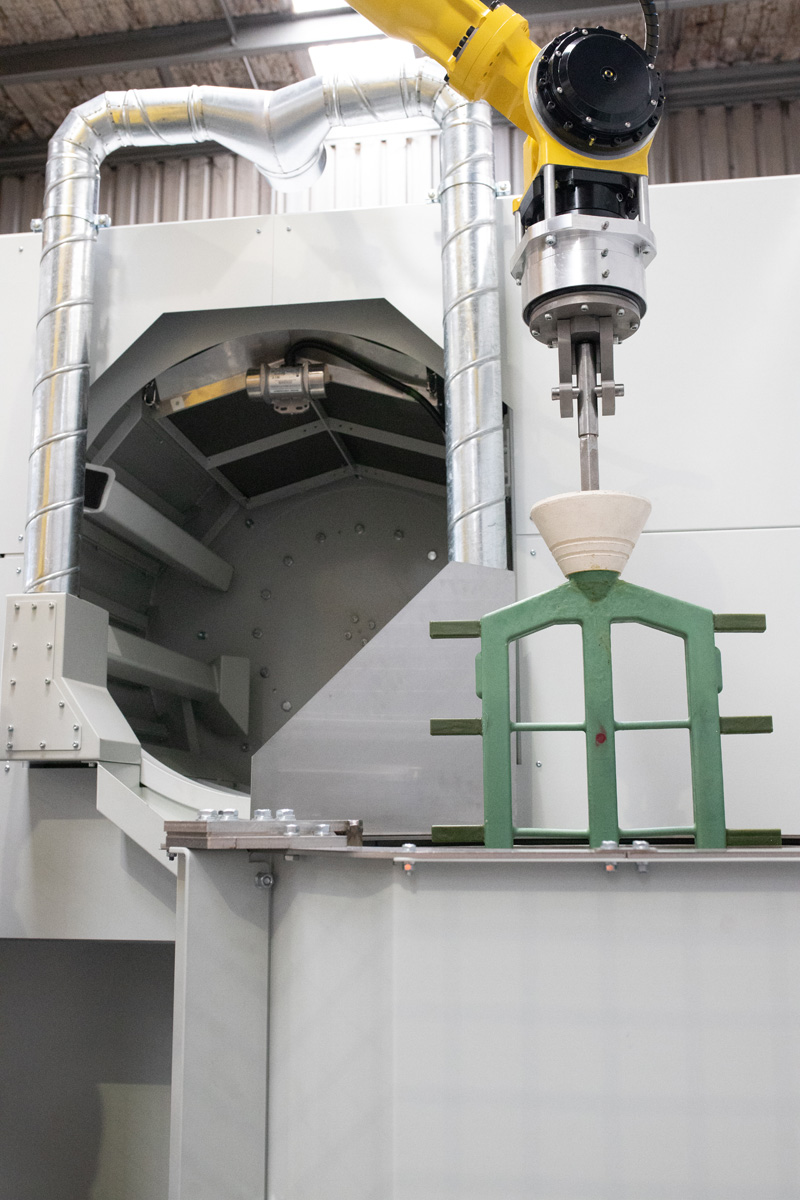

The ‘Dip Mate’ is a new revolutionary modular dipping cell system that provides an economical and flexible system for shell building using automation.

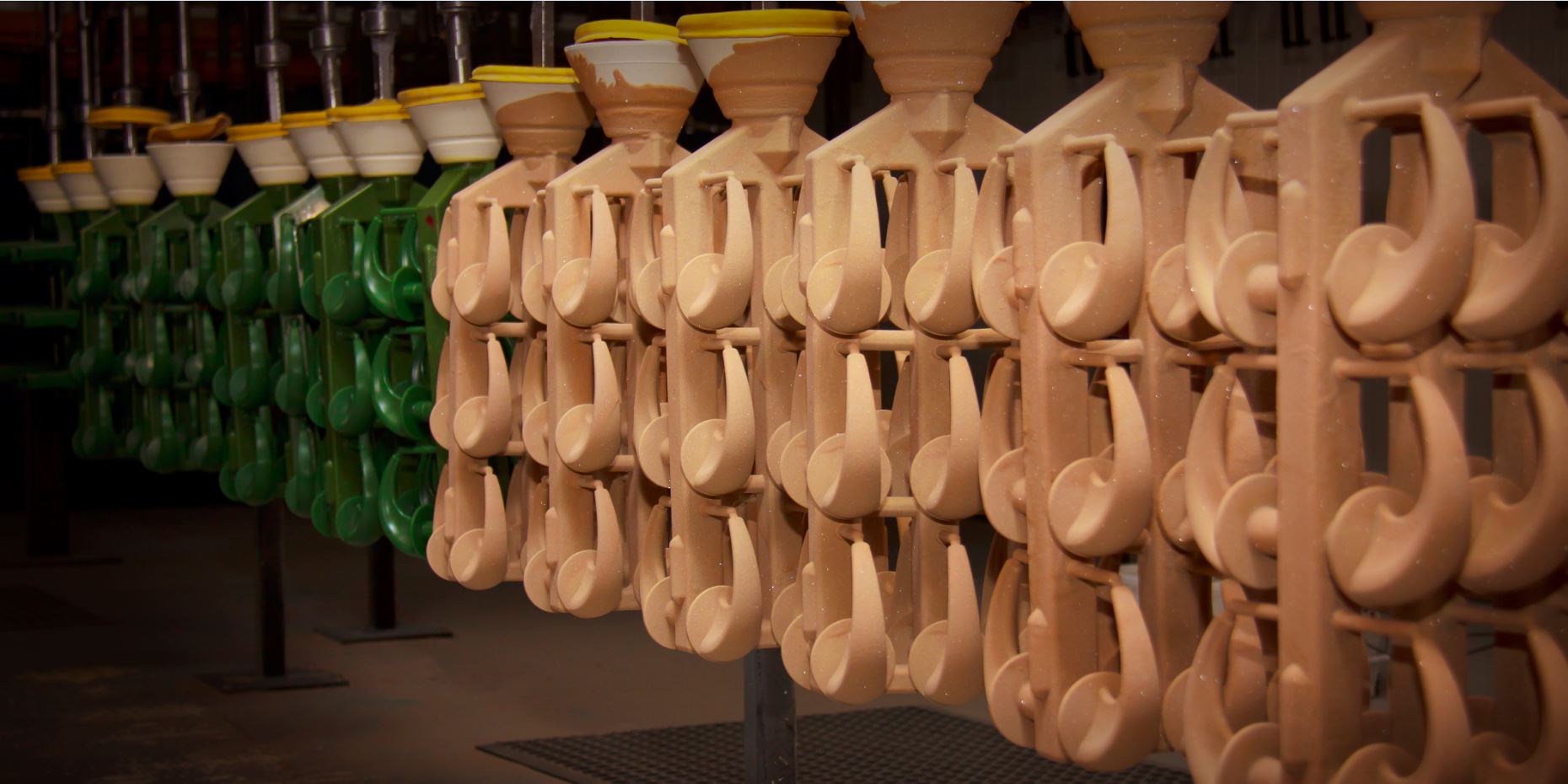

Focused on single tree dipping rather than multi tree hangers, the DIP MATE is the perfect solution for smaller foundries wanting to transition from manual dipping to automation at a smaller scale, or for R&D facilities to perform testing on new product or new shelling materials.
Available in single or double module
The “single” module includes one slurry tank and one sander, perfect for backup coats, while the “double” module, contains two slurry tanks and two sanders, ideal for prime/intermediate, or intermediate/backup sequences.
Offered as a standalone skid mounted unit, the Dip Mate is ready to use straight out of the box.
Increase Capacity
To increase capacity, additional units can be added, while add-on options are available to further maximise your DIP MATE potential.
Pre-programmed dip routines,
Modular design

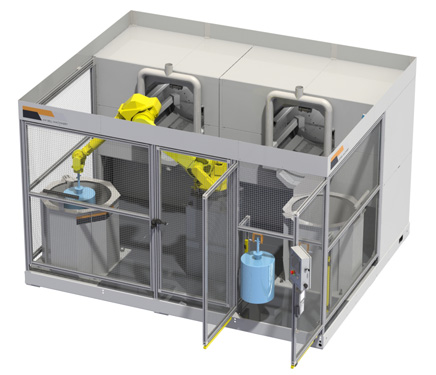

The ‘Dip Mate’ is a new revolutionary modular dipping cell system that provides an economical and flexible system for shell building using automation.
Focused on single tree dipping rather than multi tree hangers, the DIP MATE is the perfect solution for smaller foundries wanting to transition from manual dipping to automation at a smaller scale, or for R&D facilities to perform testing on new product or new shelling materials.
Key Features:
Available in single or double module
The “single” module includes one slurry tank and one sander, perfect for back up coats, while the “double” module, contains two slurry tanks and two sanders, ideal for prime/intermediate, or intermediate/back up sequences.
Offered as a stand alone skid mounted unit, the Dip Mate is ready to use straight out of the box.
INCREASE CAPACITY
To increase capacity additional units can be added, while add on options are available to further maximise your DIP MATE potential.
Tree rotation, tree tilt (45° forward and back), and in/out motion is all controlled electronically via the joystick controller, as is the nozzle up/down motion. Nozzle tilt motion (45° in all directions) uses direct control cables to give better feel and responsiveness to the operator.
| Maximum blast pressure | 10,000 psi |
| Tree envelope (Max) | 800mm diameter X 800mm height |
| High Pressure Pump | 45kW with 40lpm flow rate |
| Water Filtration System | Proportional control with chiller system and settling tanks (4 x 1,000lt) |
The WBS Drag Conveyor removes all of the shell material from the blast cabinet as well as facilitate water into the settling system for recycling. The conveyor can be supplied with a bin or designed to customer specifications.
We understand and appreciate the uniqueness of each foundry operation. With over 30 years of experience in designing equipment specifically for foundries, we pride ourselves on delivering a solution that is right for your business.
